Pump Structure

High-power electric pump stator embedded thermal control switch. At normal temperature, it is in a normally closed state. When the stator temperature reaches 125℃, the switch opens. During installation and wiring, the two "motor temperature rise signal lines" are connected in series to the stop button in the control cabinet. A water leakage probe is installed in the oil chamber for water leakage detection. The "oil chamber water ingress probe signal line" is connected in parallel with any one of the power lines and connected to the leakage circuit breaker. When the pump-side mechanical seal leaks and the oil-water ratio in the oil chamber reaches a certain concentration, the oil-water probe will send an alarm signal (indicator light on) and automatically cut off the power, causing the pump to stop working. Maintenance personnel should promptly replace the oil in the oil chamber and check and replace the pump-side mechanical seal.

Float switch: When the motor-side mechanical seal leaks, liquid enters the float switch chamber, and the infiltrated liquid reaches a certain height, the float switch will send an alarm signal (indicator light on) and stop the pump. Maintenance personnel should carry out maintenance and replace the motor-side mechanical seal.



Technical Requirements

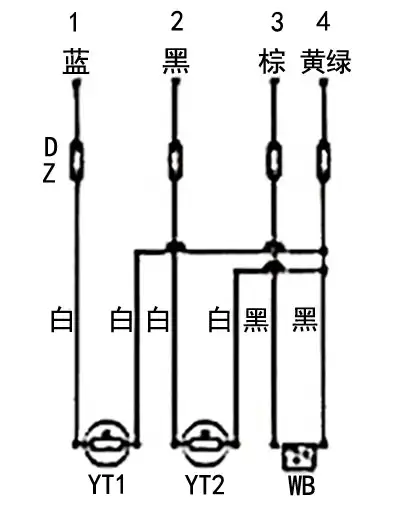

● YT1 oil chamber water leakage detection, YT2 motor cavity water leakage detection, the component is an oil-water probe. In the absence of water, it is normally open, with a resistance of maxQ, passing through a power supply of AC24V<1;

● WB motor temperature-type protector, powered by AC24V<1, normally closed at normal temperature, tripping temperature is 130±5℃;

● DZ is the internal wiring terminal of the motor.



Model Meaning



Technical Parameters

11-22kW 2-pole WQ、JWYQ、WQB、WQP

Model Specification Flow Rate
m³/h 		Head
m 		Power
kW 		Voltage
V 		Speed
r/min		 Piping
(inch)
50WQ20-55-11 20  55  11  380  2900  2
65WQ30-40-11 30  40  11  380  2900  2.5
80WQ60-30-11 60  30  11  380  2900  3
100WQ80-25-11 80  25  11  380  2900  4
150WQ100-20-11 100  20  11  380  2900  6
150WQ120-15-11 120  15  11  380  2900  6
200WQ180-11-11 180  11  11  380  2900  8
50WQ20-70-15 20  70  15  380  2900  2
65WQ30-60-15 30  60  15  380  2900  2.5
80WQ60-40-15 60  40  15  380  2900  3
100WQ80-35-15 80  35  15  380  2900  4
150WQ100-30-15 100  30  15  380  2900  6
150WQ120-25-15 120  25  15  380  2900  6
200WQ180-15-15 180  15  15  380  2900  8
50WQ20-80-18.5 20  80  18.5  380  2900  2
65WQ30-68-18.5 30  68  18.5  380  2900  2.5
80WQ60-45-18.5 60  45  18.5  380  2900  3
10OWQ80-40-18.5 80  40  18.5  380  2900  4
150WQ100-36-18.5 100  36  18.5  380  2900  6
200WQ180-18-18.5 180  18  18.5  380  2900  8
50WQ20-90-22 20  90  22  380  2900  2
65WQ30-75-22 30  75  22  380  2900  2.5
80WQ60-50-22 60  50  22  380  2900  3
100WQ80-45-22 80  45  22  380  2900  4
150WQ100-40-22 100  40  22  380  2900  6
200WQ200-20-22 200  20  22  380  2900  8



5.5-110kW 4, 6, 8-pole WQ、JYWQ、WQB、WQP

Model Specification Piping
(inch) 		Speed
r/min		   Model Specification Piping
(inch) 		Speed
r/min
Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW 		Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW
250WQ500-12-30 10  1450  400WQ1700-6-45 16  980
250WQ600-9-30 10  1450  100WQ100-65-55 4  1450
300WQ800-7-30 12  1450  150WQ180-50-55 6  1450
300WQ1000-6-30 12  1450  200WQ300-40-55 8  1450
350WQ1500-4-30 14  980  200WQ400-30-55 8  1450
100WQ120-50-37 4  980  250WQ600-20-55 10  1450
150WQ200-35-37 6  1450  300WQ800-15-55 12  1450
200WQ300-28-37 8  1450  350WQ1000-10-55 14  1450
200WQ350-25-37 8  1450  350WQ1100-10-55 14  980
250WQ600-12-37 10  1450  400WQ1300-8-55 16  1450
300WQ800-9-37 12  1450  400WQ1500-8-55 16  980
350WQ1000-6-37 14  1450  500WQ2200-5-55 20  740
350WQ1100-6-37 14  980  100WQ120-75-75 4  1450
400WQ1300-5-37 16  980  150WQ200-60-75 6  1450
100WQ100-57-45 4  1450  200WQ350-45-75 8  1450
150WQ200-40-45 6  1450  250WQ600-25-75 10  1450
200WQ300-32-45 8  1450  300WQ800-20-75 12  1450
200WQ400-25-45 8  1450  350WQ1000-15-75 14  980
250WQ600-15-45 10  1450  350WQ1500-12-75 14  1450
300WQ800-12-45 12  1450  400WQ1300-13-75 16  1450
350WQ1200-8-45 14  1450  400WQ1700-10-75 16  980
350WQ1300-8-45 14  980  500WQ2000-8-75 20  980



5.5-110kW 4, 6, 8-pole WQ、JYWQ、WQB、WQP

Model Specification Piping
(inch) 		Speed
r/min		   Model Specification Piping
(inch) 		Speed
r/min
Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW 		Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW
80WQ80-13-5.5 3  1450  100WQ100-35-18.5 4  1450

100WQ110-10-5.5
4
1450
150WQ180-20-18.5		 6
1450

150WQ150-7-5.5
6
1450
200WQ250-15-18.5
8
1450
80WQ80-20-7.5 3  1450  200WQ350-10-18.5 8  1450
100WQ100-15-7.5 4  1450  250WQ500-7-18.5 10  1450
150WQ145-9-7.5 6  1450  300WQ650-5-18.5 12
1450
200WQ250-6-7.5 8  1450  100WQ100-40-22 4  1450
100WQ100-25-11 4  1450  150WQ200-22-22 6  1450
150WQ180-11-11 6  1450  200WQ300-16-22 8  1450
200wQ300-7-11 8  1450  200WQ400-10-22 8  1450
250WQ400-5-11 10  1450  250WQ500-9-22 10  1450
100WQ100-30-15 4  1450  300WQ650-7-22 12  1450
150WQ200-15-15 6  1450  100WQ120-45-30 4  1450
200WQ250-11-15 8  1450  150WQ180-30-30 6  1450
250WQ500-5-15 10  1450  200WQ250-22-30 8  1450

5.5-110kW 4, 6, 8-pole WQ、JYWQ、WQB、WQP

Model Specification Piping
(inch) 		Speed
r/min		   Model Specification Piping
(inch) 		Speed
r/min
Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW 		Diameter
mm 		Flow Rate
m³/h 		Head
m 		Power
kW
500WQ2700-6-75 20  1450  100WQ100-100-110 4  1450
100WQ120-85-90 4  1450 150WQ180-80-110 6  1450
150WQ200-70-90 6  1450  200WQ300-65-110 8  1450
200WQ300-60-90 8 1450
250WQ600-40-110 10  1450
200WQ400-50-90 8 1450
300WQ1000-25-110 12  1450
250WQ600-30-90 10  1450
350WQ1300-20-110 14  1450
300WQ800-25-90 12  1450
350WQ1600-16-110 14  980
350WQ1000-18-90 14  1450
400WQ1500-17-110 16  1450
350WQ1200-18-90 14  980
400WQ1800-15-110 16  980
400WQ1300-16-90 16  1450
500wQ2500-10-110 20  980
400WQ1500-15-90 16  980
500WQ3000-8-110 20  740
500WQ2000-10-90 20  980
500WQ2500-8-90 20  740  600WQ3200-7-110 24  980
600WQ3000-6-90 24  740  600WQ3800-6-110 24  740
