Product Overview

The Q(D)X-T iron-clad small submersible electric pump (hereinafter referred to as the electric pump) consists of three parts: a water pump, a seal, and a motor. The motor is located at the top of the electric pump and is a single-phase or three-phase asynchronous motor. The water pump is located below the motor and has a centrifugal impeller and volute structure. A double-end face mechanical seal plus a cartridge oil seal is used between the water pump and the motor. The mechanical seal acts as a dynamic seal, and each fixed mouth seal uses an oil-resistant rubber O-ring as a static seal. The entire pump uses stainless steel bolts. The electric pump has a built-in temperature protector to prevent the electric pump from burning out.



Applications

● Underwater pumping;

● Agricultural irrigation;

● Garden watering;

● Household water supply;

● Used to remove industrial accumulated water, construction water supply and drainage, and aquaculture pond drainage and irrigation.



Features

● Small size, light weight;

● All-copper high-precision motor, high efficiency, the rotating shaft is processed by heat treatment, and the characteristics are stable;

● Motor built-in temperature protector: prevents the water pump from burning out during abnormal operation such as overload and jamming.



Operating Conditions

● The pump frequency is 50Hz, the voltage is 220V for single-phase AC, and 380V for three-phase AC;

● Voltage fluctuation range is ±10% of the rated value;

● Operating environment temperature 0~40℃, conveyed medium temperature does not exceed +40℃;

● The solid content ratio of solid particles in the medium does not exceed 0.1%, and the particle size is not larger than 0.2mm;

● Submersion depth does not exceed 5m;

● The PH value of the conveyed medium is between 6.5-8.5.

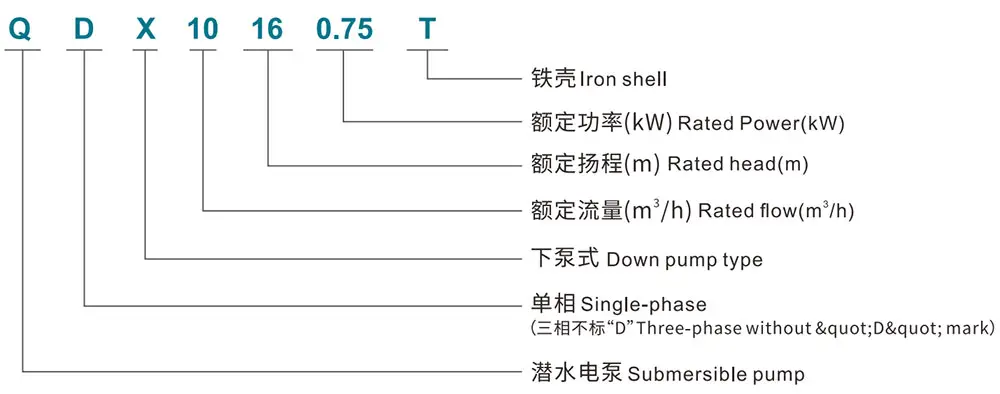

Model Meaning

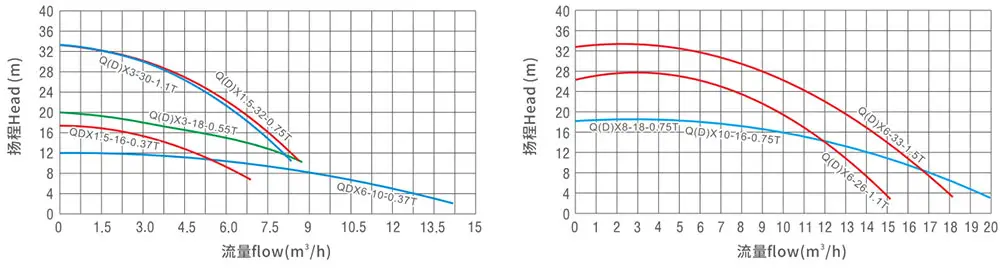

Performance Curve



Technical Parameters

Model Specification	Rated Flow  m³/h	Rated Head  m	Maximum Flow  m³/h	Maximum Head  m	Rated Power  kW	Synchronous Speed  r/min	Rated Voltage  V	Rated Current  A	Pipe Inner Diameter  mm	Head Application Range  m
QDX1.5-16-0.37T	1.5	16	7	17.5	0.37	3000	220	2.9	25	Total Head  Total head
QDX6-10-0.37T	6	10	14	12	0.37	3000	220	2.9	40	Total Head  Total head
QDX3-18-0.55T	3	18	8	20	0.55	3000	220/380	4.1/1.6	25	Total Head  Total head
QDX10-12-0.55T	10	12	19	14	0.55	3000	220/380	4.1/1.6	50	Total Head  Total head
QDX1.5-32-0.75T	1.5	32	7.5	33	0.75	3000	220/380	5.1/2.0	25	Total Head  Total head
QDX8-18-0.75T	8	18	20	20	0.75	3000	220/380	5.1/2.0	40	Total Head  Total head
QDX10-16-0.75T	10	16	20	18.5	0.75	3000	220/380	5.1/2.0	50	Total Head  Total head
QDX15-10-0.75T	15	10	20	18.5	0.75	3000	220/380	5.1/2.0	65	Total Head  Total head
QDX3-30-1.1T	3	30	8	34	1.1	3000	220/380	7.3/2.7	25	Total Head  Total head
QDX6-26-1.1T	6	26	15	27.5	1.1	3000	220/380	7.3/2.7	40	Total Head  Total head
QDX15-15-1.1T(2 inch)	15	15	32	18.5	1.1	3000	220/380	7.3/2.7	50	Total Head  Total head
QDX15-15-1.1T(2.5 inch)	15	15	32	18.5	1.1	3000	220/380	7.3/2.7	65	Total Head  Total head
QDX40-6-1.1T	40	6	53	10.5	1.1	3000	220/380	7.3/2.7	80	Total Head  Total head
QDX6-33-1.5T	6	33	18	35	1.5	3000	220/380	9.5/3.6	40	Total Head  Total head
QDX15-18-1.5T(2 inch)	15	18	33.5	22	1.5	3000	220/380	9.5/3.6	50	Total Head  Total head
QDX15-18-1.5T(2.5 inch)	15	18	33.5	22	1.5	3000	220/380	9.5/3.6	65	Total Head  Total head
QDX40-9-1.5T	40	9	60	12	1.5	3000	220/380	9.5/3.6	80	Total Head  Total head
QDX50-7-1.5T	50	7	60	12	1.5	3000	220/380	9.5/3.6	100	Total Head  Total head



Installation Dimensions

Model Specification	H	H1	L	L1	L2	W	DN	G
QDX1.5-16-0.37T	369	62	195	79	101	158	25	G3/4
QDX6-10-0.37T	380	67	215	79	105	158	25	G3/4
QDX3-18-0.55T	377	55	205	79	126	159	25	G3/4
QDX10-12-0.55T	377	55	205	79	126	159	50	G1.5
QDX1.5-32-0.75T	400	58	230	90	140	180	25	G3/4
QDX8-18-0.75T	402	58	230	79	151	160	40	/
QDX10-16-0.75T	402	58	230	79	151	160	50	G1.5
QDX15-10-0.75T	402	58	230	79	151	160	65	1
QDX3-30-1.1T	422	58	240	95	145	190	25	G3/4
QDX6-26-1.1T	428	60	256	95	161	190	40	1
QDX15-15-1.1T(2 inch)	440	60	242	87	155	175	50	G1.5
QDX15-15-1.1T(2.5 inch)	440	60	242	87	155	175	65	/
QDX40-6-1.1T	470	82	270	90	180	194	80	G2.5
QDX6-33-1.5T	426	60	256	95	161	190	40	1
QDX15-18-1.5T(2 inch)	440	60	242	87	155	175	50	G1.5
QDX15-18-1.5T(2.5 inch)	440	60	242	87	155	175	65	/
QDX40-9-1.5T	470	82	282	94	188	194	80	G2.5
QDX50-7-1.5T	476	80	312	98	214	194	100	G3

The Q(D)X-T iron-shell small submersible electric pump (hereinafter referred to as the electric pump) consists of three parts: a water pump, a seal, and an electric motor.
