Q(D)X-TA iron shell submersible electric pump
Q(D)X-TA iron shell submersible electric pump
Q(D)X-TA iron shell submersible electric pump
+
  • Q(D)X-TA iron shell submersible electric pump
  • Q(D)X-TA iron shell submersible electric pump
  • Q(D)X-TA iron shell submersible electric pump

Product Overview

The Q(D)X-TA submersible electric pump (hereinafter referred to as the electric pump) consists of three parts: pump, seal, and motor. The motor is located at the top of the electric pump and is a single-phase or three-phase asynchronous motor. The pump is located below the motor and has a centrifugal impeller and volute structure. A double-end face mechanical seal plus a skeleton oil seal is used between the pump and the motor. The mechanical seal acts as a dynamic seal, and each fixed mouth seal uses a "0"-type oil-resistant rubber seal ring as a static seal. The entire pump uses stainless steel bolts, and the cast iron pump body is electrophoretically treated to effectively isolate air and water, prevent oxidation, and extend service life. The electric pump has a built-in temperature protector to prevent the electric pump from burning out.



Features and Applications

The Q(D)X-TA series pumps are small and lightweight, suitable for water pumping in rural wells, irrigation, aquaculture aeration and water supply, garden spraying, and water supply in hotels, canteens, and other places.



Operating Conditions

The electric pump operates continuously and normally under the following operating conditions.

● The temperature of the water source is less than 40°C.

● The PH value of the medium is between 6.5 and 8.5.

● The power frequency is 50Hz, the voltage is 220V for single-phase AC and 380V for three-phase AC, and the voltage fluctuation range is ±10% of the rated value.

● The water contains no more than 0.1% solid impurities, the particles are no larger than 0.2mm, and the submersion depth does not exceed 5m.



Model Meaning



Performance Curve



Technical Parameters

Model Specifications

Rated Flow
m³/h

Rated Head
m

Maximum Flow
m³/h

Maximum Head
m

Rated Power
kW

Synchronous Speed
r/min

Rated Voltage
V

Rated Current
A

Pipe Inner Diameter
mm

Head Applicable Range
m

Net Weight
kg

QDX1.5-16-0.37TA

1.5

16

7

17.5

0.37

3000

220

2.9

25

>8

10.8

QDX6-10-0.37TA

6

10

14

12

0.37

3000

220

2.9

40

Full Head

11

Q(D)X3-20-0.55TA

3

20

8.8

21

0.55

3000

220/380

4.1/1.6

25

>15

16

Q(D)X10-12-0.55TA

10

12

19

14

0.55

300

220/380

4.1/1.6

50

Full Head

/

Q(D)X1.5-32-0.75TA

1.5

32

8.5

34.5

0.75

3000

220/380

5.2/2.0

25

>25

17.8

Q(D)X8-18-0.75TA

8

18

20

20

0.75

3000

220/380

5.2/2.0

40

>15

17.6

Q(D)X10-16-0.75TA

10

16

20

18.5

0.75

3000

220/380

5.2/2.0

51

>12

17.6

Q(D)X3-30-1.1TA

3

30

8.5

34.5

1.1

3000

220/380

7.3/2.7

25

>24

19

Q(D)X6-26-1.1TA

6

26

15

27.5

1.1

3000

220/380

7.3/2.7

40

>20

20

Q(D)X10-20-1.1TA

10

20

28.5

22

1.1

3000

220/380

7.3/2.7

51

>15

19.75

Q(D)X15-15-1.1TA

15

15

32

18.5

1.1

3000

220/380

7.3/2.7

64

>12

19.75

Q(D)X40-7-1.1TA

40

7

53

10.5

1.1

3000

220/380

7.3/2.7

76

Full Head

22.65

Q(D)X6-33-1.5TA

6

33

18

35

1.5

3000

220/380

9.5/3.6

40

>25

22

Q(D)X10-24-1.5TA

10

24

31

26

1.5

3000

220/380

9.5/3.6

51

>18

20.75

Q(D)X15-18-1.5TA

15

18

33.5

22

1.5

3000

220/380

9.5/3.6

64

>15

20.75

Q(D)X40-9-1.5TA

40

9

60

12

1.5

3000

220/380

9.5/3.6

76

Full Head

23.25

Q(D)X50-7-1.5TA

50

7

60

12

1.5

3000

220/380

9.5/3.6

76

Full Head

24.2

Q(D)X65-8-2.2TA

65

8

85

14

2.2

3000

220/380

14/5.1

102

Full Head

32.5

Q(D)X20-26-2.2TA

20

26

38

29

2.2

3000

220/380

14/5.1

51

>20

/

Q(D)X40-15-2.2TA

40

15

60

19

2.2

3000

220/380

14/5.1

76

Full Head

/



Installation Dimensions

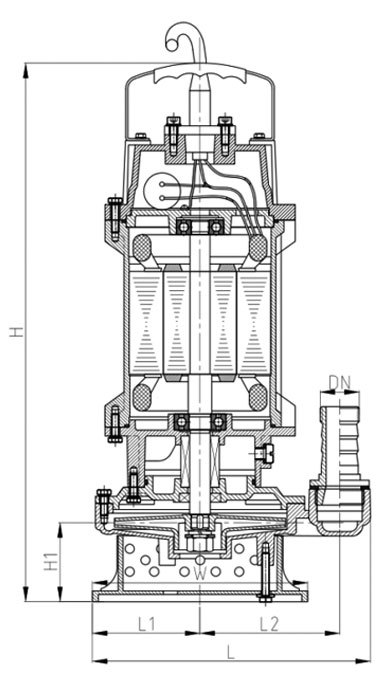

Q(D)X-TA Submersible Electric Pump Installation Dimensions

Serial Number

Specifications

H

H1

L

L1

L2

W

DN

1

QDX1.5-16-0.37TA

369

62

195

79

101

158

25

2

QDX6-10-0.37TA

380

67

215

79

105

158

40

3

Q(D)X3-20-0.55TA

413

66

206

80

105

164

25

4

Q(D)X10-12-0.55TA

419

66

230

79

117

162

50

5

Q(D)X1.5-32-0.75TA

435

67

240

94

125

239

25

6

Q(D)X8-18-0.75TA

440

66

230

79

117

162

40

7

Q(D)X10-16-0.75TA

440

66

230

79

117

162

50

8

Q(D)X3-30-1.1TA

463

67

240

94

125

239

25

9

Q(D)X10-20-1.1TA

466

67

248

90

126

184

50

10

Q(D)X6-26-1.1TA

465

67

256

95

132

190

40

11

Q(D)X15-15-1.1TA

466

67

252

90

126

184

50

12

Q(D)X40-7-1.1TA

496

83

270

93

140

194

80

13

Q(D)X10-24-1.5TA

466

67

248

90

126

184

50

14

Q(D)X6-33-1.1TA

462

66

256

95

132

190

40

15

Q(D)X15-18-1.5TA

466

67

252

90

126

184

50

16

Q(D)X40-9-1.5TA

496

82

282

93

140

194

80

17

Q(D)X50-7-1.5TA

502

80

305

93

150

194

100

18

Q(D)X65-8-2.2TA

550

84

345

119

162

237

100

19

Q(D)X20-26-2.2TA

520

73

280

104

140

215

50
