Product Overview

The WQ(D)-D small sewage and sludge submersible pump (hereinafter referred to as the electric pump) consists of three parts: a water pump, a seal, and a motor. The motor is located at the top of the electric pump and is a single-phase or three-phase asynchronous motor. The water pump is located below the motor and has a semi-open impeller and volute structure. A double-end face mechanical seal plus a skeleton oil seal is used between the water pump and the motor. The mechanical seal acts as a dynamic seal, and each fixed mouth seal uses an oil-resistant rubber "O" ring for static sealing. The entire pump uses stainless steel bolts. The electric pump has a built-in temperature-type protector to prevent the electric pump from burning out.



Applications

This series of electric pumps are used for drainage in basements, municipal engineering, pumping of high-viscosity rainwater, pumping of construction site slurry, domestic sewage discharge, aquaculture sewage discharge, and other water supply and drainage occasions.



Features

● Non-clogging impeller design: It can exert maximum drainage function for sewage containing solid or fibrous materials;

● High-precision motor with all-copper coil, high efficiency, and stable characteristics;

● Built-in temperature-type thermal protector in the motor: Prevents the pump from burning out during abnormal operation such as overload and jamming;

● All pump housings are made of gray cast iron HT200, which can withstand heavy loads and impact;

● The outlet of the entire series of electric pumps can be connected to flexible pipes and rigid pipes (the rigid pipe threaded interface is G1.5);

● 1.1kW and 1.5kW can be optionally equipped with national standard flange pump body connectors for use with coupling elbows.



Operating Conditions

● The pump frequency is 50Hz, and the voltage is 220V single-phase AC and 380V three-phase AC;

● The voltage fluctuation range is ±10% of the rated value;

● The operating ambient temperature is 0~40℃, and the conveyed medium temperature does not exceed +40℃;

● The conveyed medium viscosity ≤1.3x10 ³kg/m³;

● The solid content ratio of solid particles in the medium does not exceed 3%;

● Submersion depth does not exceed 5m;

● The PH value of the conveyed medium is between 4-10.



Model Meaning

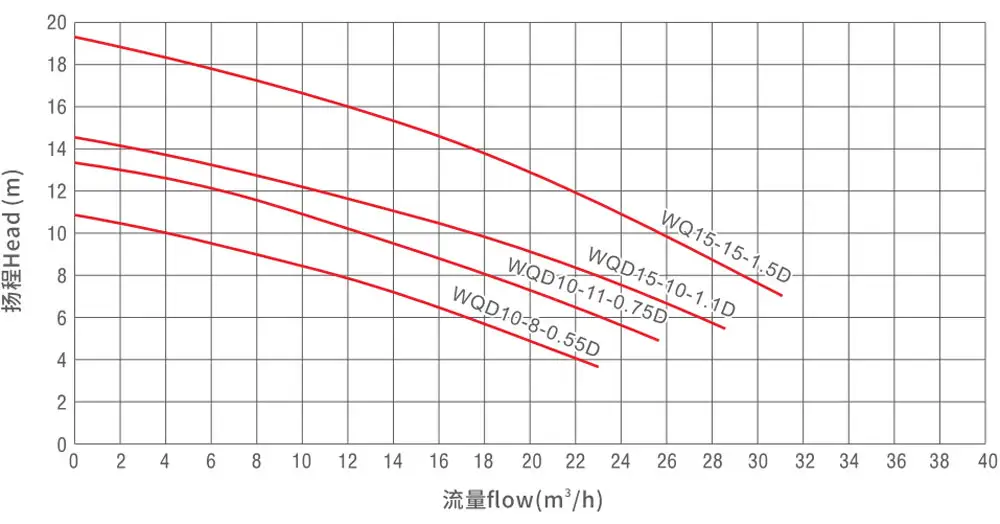

Performance Curve



Technical Parameters

Model Specifications	Rated Flow m³/h	Rated Head m	Maximum Flow m³/h	Maximum Head m	Rated Power kW	Synchronous Speed r/min	Rated Voltage V	Rated Current A	Pipe Inner Diameter mm	Head Applicable Range m	Electric Pump Dimensions (Length × Width × Height) m	Particles Passing Maximum Diameter mm
50WQ(D)10-8-0.55D	10	8	23	11	0.55	3000	220/380	4.1/1.6	51	Full Head	260x182x415	20
50WQ(D)10-11-0.75D	10	11	26	13.5	0.75	3000	220/380	5.2/2.0	51	Full Head	260x182x436	20
50WQ(D)15-10-1.1D	15	10	28	14	1.1	3000	220/380	7.3/2.7	51	Full Head	258x182x468	20
50WQ(D)15-10-1.1D(FL)	15	10	28	14	1.1	3000	220/380	7.3/2.7	51	Full Head	225x190x487	20
50WQ(D)15-15-1.5D	15	15	34	20	1.5	3000	220/380	9.5/3.6	51	Full Head	263x190x487	20
50WQ(D)15-15-1.5D(FL)	15	15	34	20	1.5	3000	220/380	9.5/3.6	51	Full Head	225x190x487	20

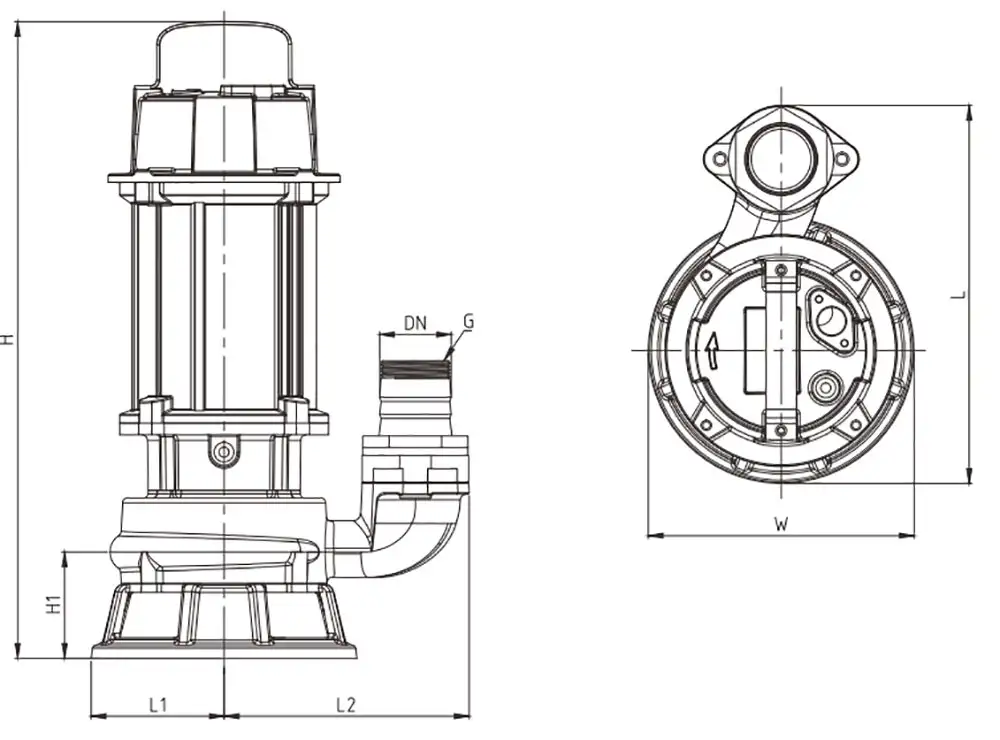

Installation Dimensions





Model Specifications	H	H1	L1	L2	L	W	DN	G	n-￠d1	D1	D
50WQ(D)10-8-0.55D	415	73	91	169	260	182	50	G1.5	/	/	1
50WQ(D)10-11-0.75D	436	73	91	169	260	182	50	G1.5	/	/	/
50WQ(D)15-10-1.1D	468	77	91	167	258	182	50	G1.5	/	/	/
50WQ(D)15-10-1.1D(FL)	487	98	95	218	313	190	50	/	4-￠14	110	140
50WQ(D)15-15-1.5D	487	98	95	168	263	190	50	G1.5	1	1	/
50WQ(D)15-15-1.5D(FL)	487	98	95	218	313	190	50	1	4-￠14	110	140

The WQ(D)-D small sewage and sludge submersible electric pump (hereinafter referred to as the electric pump) consists of three parts: pump, seal, and motor.
