Product Overview

The Q(D)X-B stainless steel submersible pump (hereinafter referred to as the electric pump) consists of three parts: a water pump, a seal, and a motor. The motor is located at the top of the electric pump and is a single-phase or three-phase asynchronous motor. The water pump is located below the motor and has a centrifugal impeller and volute structure. A double-end face mechanical seal plus a stuffing box oil seal is used between the water pump and the motor. The mechanical seal acts as a dynamic seal, and each fixed mouth seal uses an oil-resistant rubber "O" ring for static sealing. The entire pump uses stainless steel bolts, and the pump casing is electrophoretically treated to effectively isolate air and water, prevent oxidation, and extend service life.



Applications

This series of electric pumps are widely used in seawater aquaculture aeration and drainage, well water pumping, agricultural irrigation, garden watering, spraying, household water supply, and other water supply and drainage occasions.



Features

● Small size, light weight, easy installation and movement;

● The motor adopts a new sealing structure, which has good sealing performance and ensures that it will not be damaged during assembly.

● Stainless steel material, wear-resistant, corrosion-resistant, beautiful appearance, compact structure;

● Uses stainless steel connecting shaft, PPO impeller and cast iron impeller for corrosion resistance;

● Standard built-in brand overload thermal protector, effectively preventing motor burnout;



Operating Conditions

● The electric pump operates continuously and normally under the following conditions.

● The temperature of the water source is less than 40°C.

● The PH value of the medium is between 6.5 and 8.5.

● The power frequency is 50Hz, the voltage is 220V single-phase AC, 380V three-phase AC, and the voltage fluctuation range is ±10% of the rated value.

● The water contains no more than 0.1% solid impurities, particles are no larger than 0.2mm, and the submersion depth does not exceed 5m.



Model Meaning



Performance Curve



Technical Parameters

Model Specifications	Rated Flow m³/h	Rated Head m	Maximum Flow m³/h	Maximum Head m	Rated Power kW	Synchronous Speed r/min	Rated Voltage V	Rated Current A	Pipe Inner Diameter mm	Head Application Range m	Net Weight kg
QDX1.5-16-0.37B	1.5	16	7	17.5	0.37	3000	220	2.9	25	>8	9.6
QDX6-10-0.37B	6	10	14	12	0.37	3000	220	2.9	40	Total Head	9.8
Q(D)X3-20-0.55B	3	20	8.8	21	0.55	3000	220/380	4.1/1.6	25	>15	14.5
Q(D)X10-12-0.55B	10	12	19	14	0.55	3000	220/380	4.1/1.6	25	Total Head	/
Q(D)X1.5-32-0.75B	1.5	32	8.5	34.5	0.75	3000	220/380	5.1/2.0	25	>25	16.2
Q(D)X8-18-0.75B	8	18	20	20	0.75	3000	220/380	5.1/2.0	40	>15	16.7
Q(D)X10-16-0.75B	10	16	20	18.5	0.75	3000	220/380	5.1/2.0	51	>12	16.75
Q(D)X3-30-1.1B	3	30	8.5	34.5	1.1	3000	220/380	7.3/2.7	25	>24	19
Q(D)X6-26-1.1B	6	26	15	27.5	1.1	3000	220/380	7.3/2.7	40	>20	20
Q(D)X10-20-1.1B	10	20	28.5	22	1.1	3000	220/380	7.3/2.7	51	>15	18.6
Q(D)X15-15-1.1B	15	15	32	18.5	1.1	3000	220/380	7.3/2.7	64	>12	18.6
Q(D)X40-7-1.1B	40	7	53	10.5	1.1	3000	220/380	7.3/2.7	76	Total Head	20.5
Q(D)X6-33-1.5B	6	33	18	35	1.5	3000	220/380	9.5/3.6	40	>25	22.7
Q(D)X10-24-1.5B	10	24	31	26	1.5	3000	220/380	9.5/3.6	51	>18	21.5
Q(D)X15-18-1.5B	15	18	33.5	22	1.5	3000	220/380	9.5/3.6	64	>15	21.5
Q(D)X40-9-1.5B	40	9	60	12	1.5	3000	220/380	9.5/3.6	76	Total Head	23
Q(D)X50-7-1.5B	50	7	60	12	1.5	3000	220/380	9.5/3.6	102	Total Head	25
Q(D)X65-8-2.2B	65	8	85	14	2.2	3000	220/380	14/5.1	102	Total Head	28.8
Q(D)X20-26-2.2B	20	26	39	30	2.2	3000	220/380	14/5.1	50	Total Head	26.3
Q(D)X40-14-2.2B	40	14	57	18.5	2.2	3000	220/380	14/5.1	80	Total Head	26.3

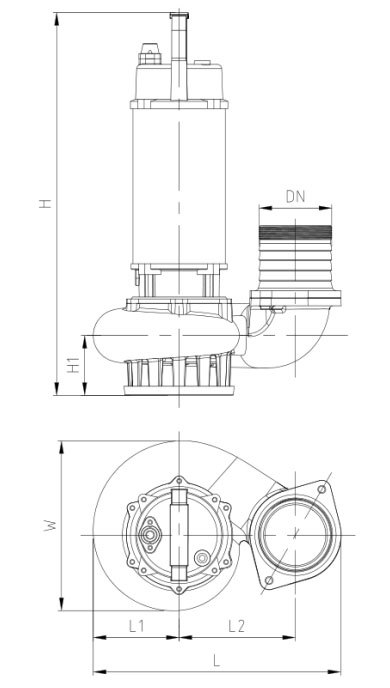

Installation Dimensions

Q(D)X-B Stainless Steel Submersible Pump Installation Dimensions
Serial Number	Specifications	H	H1	L	L1	L2	W	DN
1	QDX1.5-16-0.37B	363	62	195	79	101	158	25
2	QDX6-10-0.37B	373	67	215	79	105	158	40
3	Q(D)X3-20-0.55B	399	66	206	80	105	164	25
4	Q(D)X10-12-0.55B	420	66	230	79	117	162	50
5	Q(D)X1.5-32-0.75B	435	67	240	94	125	239	25
6	Q(D)X8-18-0.75B	430	66	230	79	117	162	40
7	Q(D)X10-16-0.75B	430	66	230	79	117	162	50
8	Q(D)X3-30-1.1B	445	67	240	94	125	239	25
9	Q(D)X10-20-1.1B	465	67	248	90	126	184	50
10	Q(D)X6-26-1.1B	445	67	256	95	132	190	40
11	Q(D)X15-15-1.1B	465	67	252	90	126	184	50
12	Q(D)X40-7-1.1B	478	83	270	93	140	194	80
13	Q(D)X10-24-1.5B	465	67	248	90	126	184	50
14	Q(D)X6-33-1.1B	458	66	256	95	132	190	40
15	Q(D)X15-18-1.5B	465	67	252	90	126	184	50
16	Q(D)X40-9-1.5B	493	82	282	93	140	194	80
17	Q(D)X50-7-1.5B	498	80	305	93	150	194	100
18	Q(D)X65-8-2.2B	534	84	345	119	162	237	100
19	Q(D)X20-26-2.2B	512	73	280	104	140	215	50

The Q(D)X-B stainless steel submersible electric pump (hereinafter referred to as the electric pump) consists of three parts: a water pump, a seal, and an electric motor.
